​LDPE High Speed Mono Layer Film Blowing Machine

Features
  • Application: T-shirt bag, packaging bag, construction film, agriculture film, lamination film etc

  • Suitable material: LDPE / LDPE+LLDPE

  • Film layer: 1 layer

  • Screw L/D ratio: 30:1

  • Motor direct connection type gearbox

  • PID+SCR temperature controller

  • ABB or HITACHI inverter

Share this:
If you need help, click here
Contact Us
  • Specification
  • Optional Devices
  • Video

Items/Models

L25/300

L35/500

L45/800

L55/1100

L65/1500

L80/2000

L100/2500 L120/3000 L150/3500
Screw Diameter (mm) 25 35 45 55 65 80 100 120 150
Film Width (mm) 50-200 150-400 400-700 600-1000 800-1350 1000-1800 1300-2300 1600-2800 2000-3000
Output (kg/hr) 6-15 15-33 25-50 40-90 60-130 120-200 180-280 240-360 350-500
Film Thickness (mm)

0.006-0.08 , depending on the material and film size

0.025-0.25

0.025-0.25 0.03-0.25 0.04-0.25
Main Motor (HP) 5 10 20 30 50 75 125 150 200

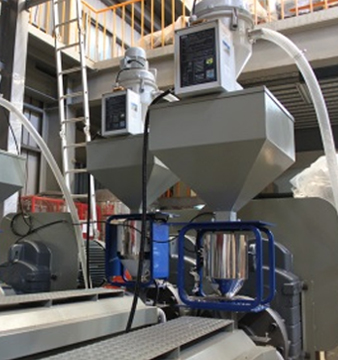

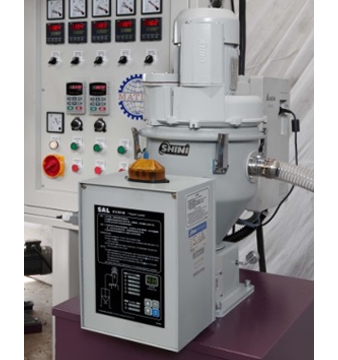

  • Auto loader

    Automatically feeds raw materials into the extruder, ensuring a continuous supply and reducing manual labor.

  • Auto layer output percentage control system

    Regulates the output of each layer in multi-layer film production, maintaining consistent thickness and quality.

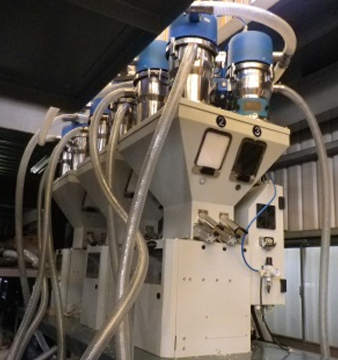

  • Gravimetric dosing system

    Precisely measures and controls the amount of raw material being fed into the extruder, ensuring accurate composition and consistent product quality.

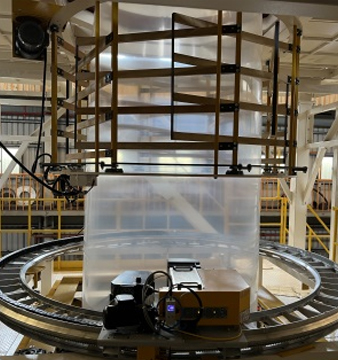

  • Auto profile control system

    Adjusts the film thickness across the width automatically, improving uniformity and reducing material wastage.

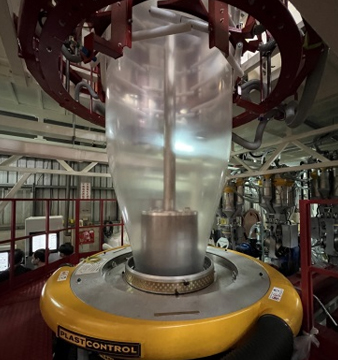

  • Auto smart air ring

    Enhances the cooling and stabilization of the film bubble, leading to better film quality and production efficiency.

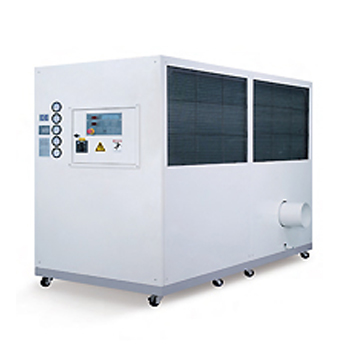

  • Air cooled blown film cooler

    Provides additional cooling to the film bubble by using air, in order to have higher production speeds and improve film properties.

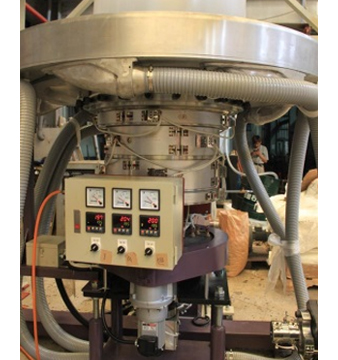

  • Die rotary

    Rotates the die head to ensure even distribution of material and uniform film thickness.

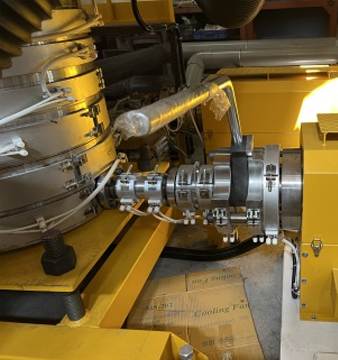

  • Lever type mechanic screen changer

    Allows for the continuous filtering of impurities in the melt material, ensuring clean and high-quality film production without stopping the machine.

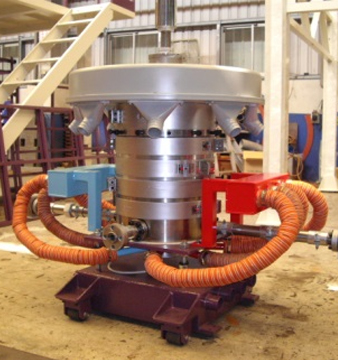

  • I.B.C (internal bubble cooling) system
    LI.B.C (internal bubble cooling) system

    Automatically control and manage blower balance and increase cooling efficiency, enhancing improving production rates, width tolerance and bubble stability.

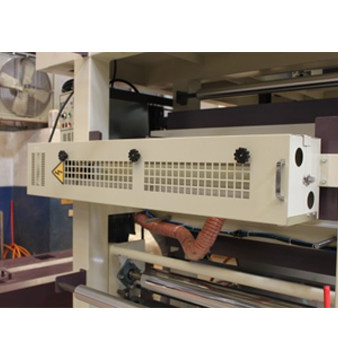

  • Corona treatment
    Corona treatment

    Treats the film surface to improve its adhesion properties, making it suitable for printing and laminating.

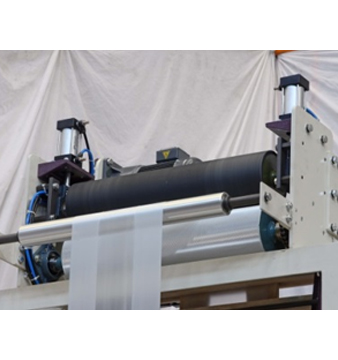

  • Embossing roller
    Embossing roller

    Adds texture or patterns to the film surface, gives the film a high surface friction coefficient, enhancing its anti-slip properties and the ability to better adhere to items.

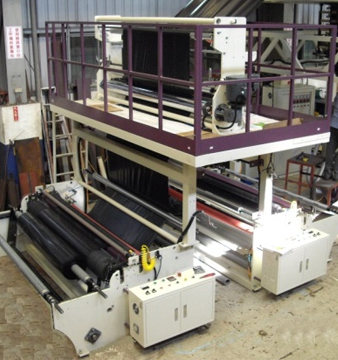

  • Back to back winders
    Back to back winders

    Combine two winders, can make different use of film at the same time according to customer’s needs.

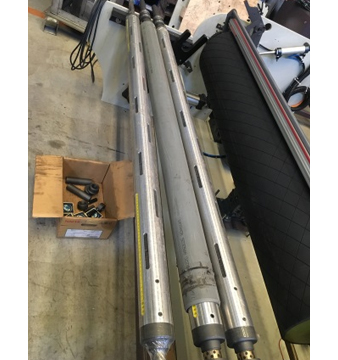

  • Air shaft
    Air shaft

    Used in winding systems to hold and center the film rolls, allowing for quick and secure roll changes.

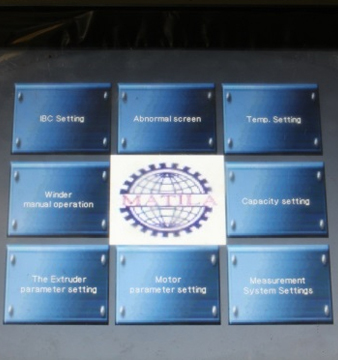

  • 15” HMI touch panel control system
    15” HMI touch panel control system

    Provides a user-friendly interface for operators to control and monitor the blown film machine, improving ease of use and operational efficiency.

×
